Country/Region
Libreville, Gabon
Latitude, Longitude
0.353908, 9.672126
Elevation
31.496 (m)
| Receiver - Firmware | SEPT POLARX5 - 5.5.0 |
|---|---|

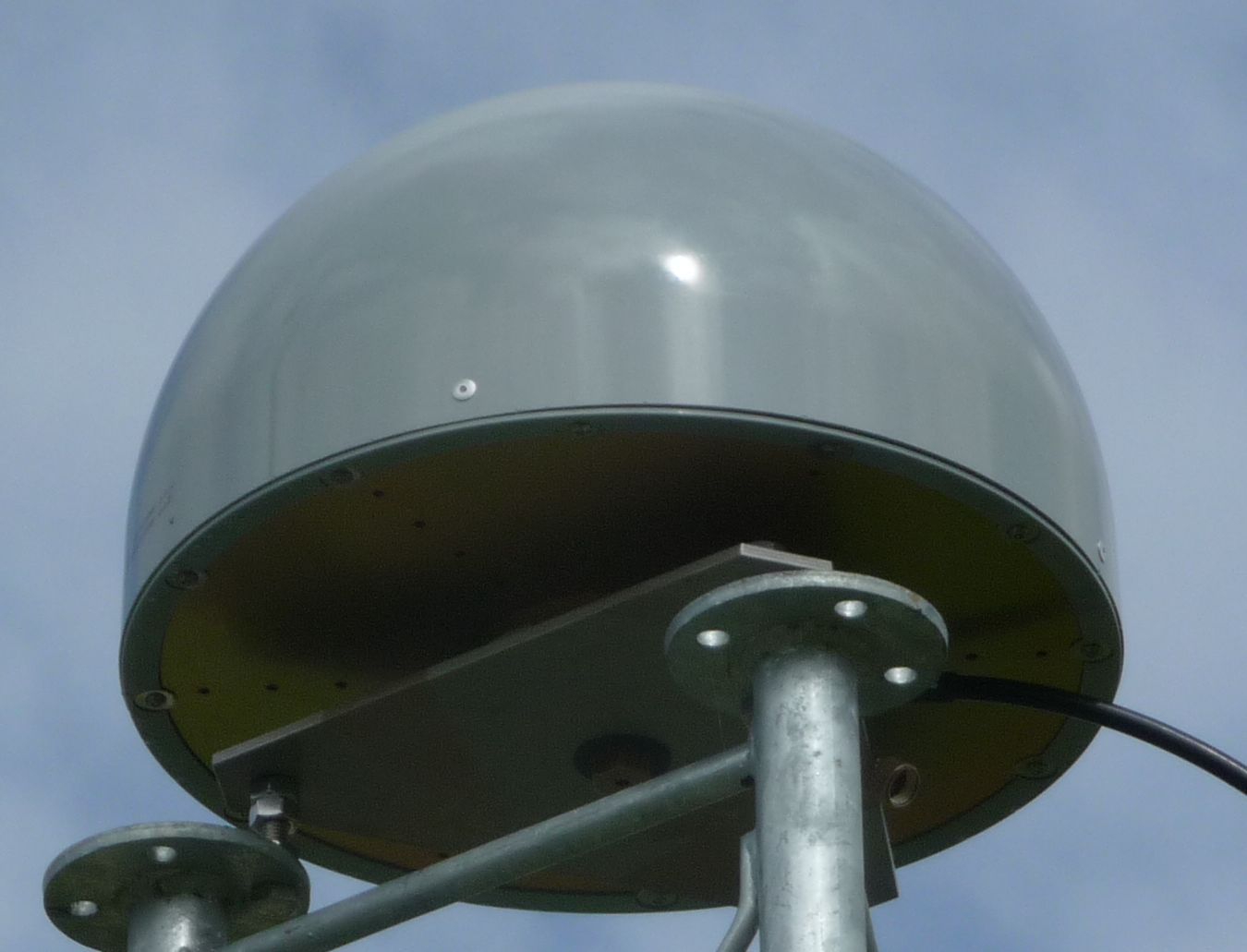

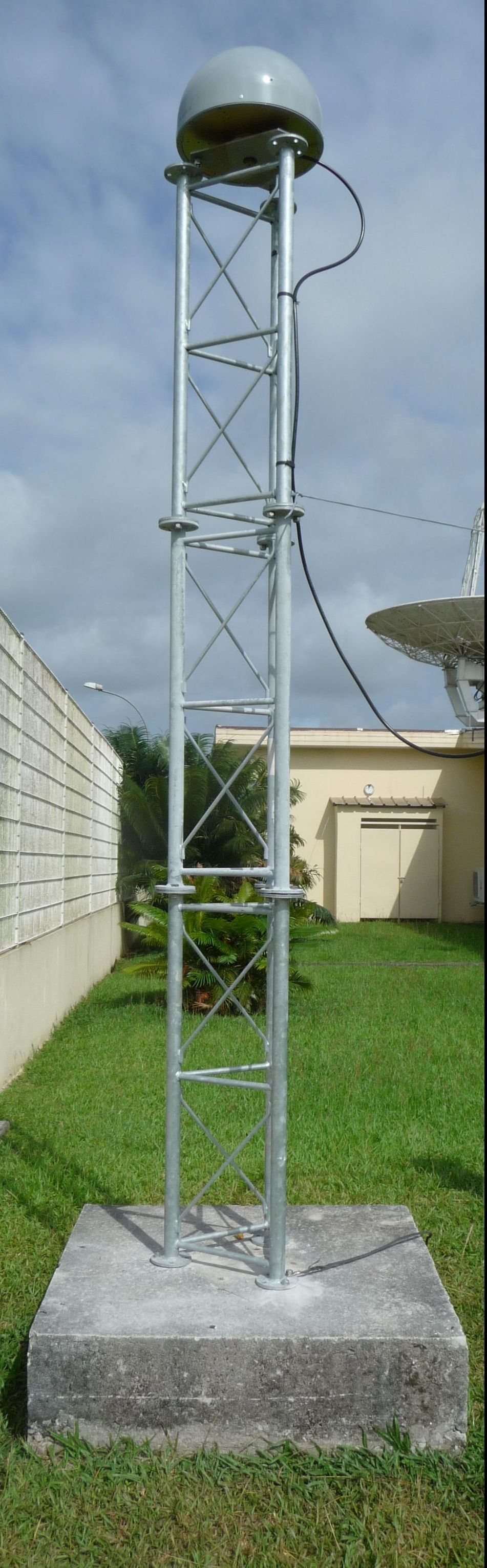

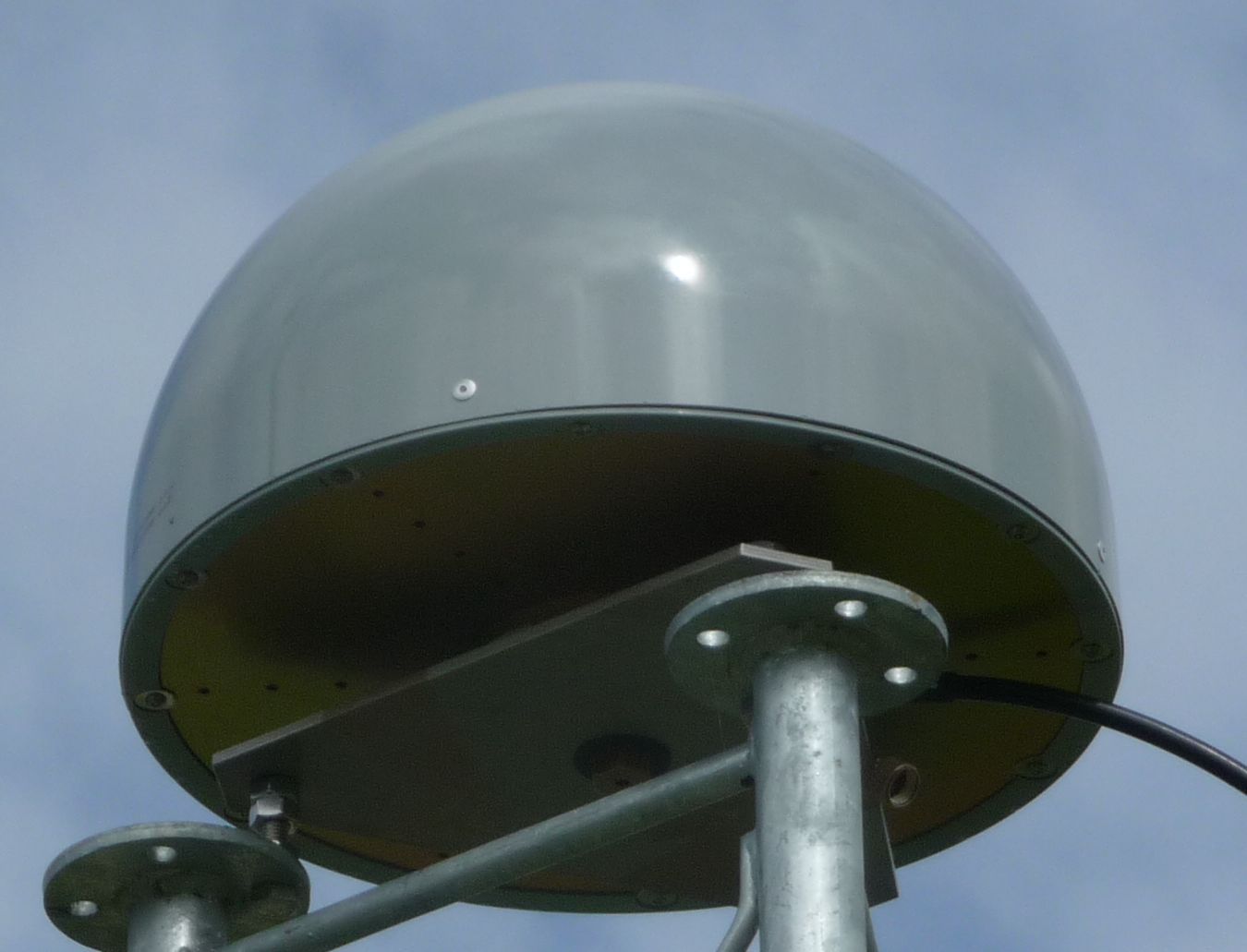

| Antenna - Radome | TRM59800.00 - SCIS |
| Antenna Calibration | ROBOT |
| Clock | INTERNAL |
| Last RINEX Data - Primary Data Center | 2025-07-08 (v3) - IGN |
| Constellation - RINEX | GPS+GLO+GAL+BDS+IRNSS+SBAS |
| Constellation - RealTime | GPS+GLO+GAL+BDS+IRNSS+SBAS |
| DOMES Number | 32809M002 |
| Nearby Tide Gauge | N/A |
| Download Type | Link |
|---|---|
| Station Log (ASCII) | NKLG00GAB.log |
| Station Log (GeodesyML) | NKLG00GAB.xml |
| Global Data Center | Link |
|---|---|
| CDDIS | CDDIS Data |
| Wuhan University | Wuhan University Data |
| ESA | ESA Data |
| IGN | IGN Data |
| KASI | KASI Data |
| SOPAC | SOPAC Data |
For a list of other data centers, visit IGS Data Access
| Receiver - Firmware | Antenna - Radome | Date |
|---|---|---|
| SEPT POLARX5 - 5.5.0 | TRM59800.00 - SCIS | Nov. 30, 2022 |
| SEPT POLARX5 - 5.4.0 | TRM59800.00 - SCIS | Jan. 26, 2021 |
| SEPT POLARX5 - 5.3.2 | TRM59800.00 - SCIS | Feb. 13, 2020 |
| SEPT POLARX5 - 5.3.0 | TRM59800.00 - SCIS | Oct. 22, 2019 |
| SEPT POLARX5 - 5.2.0 | TRM59800.00 - SCIS | Aug. 21, 2019 |
| TRIMBLE NETR9 - 5.37 | TRM59800.00 - SCIS | Jan. 30, 2019 |
| TRIMBLE NETR9 - 5.33 | TRM59800.00 - SCIS | Aug. 3, 2018 |
| TRIMBLE NETR9 - 5.30 | TRM59800.00 - SCIS | Feb. 20, 2018 |
| TRIMBLE NETR9 - 5.22 | TRM59800.00 - SCIS | July 31, 2017 |
| TRIMBLE NETR9 - 5.20 | TRM59800.00 - SCIS | May 23, 2017 |
| TRIMBLE NETR9 - 5.15 | TRM59800.00 - SCIS | Dec. 15, 2016 |
| TRIMBLE NETR9 - 5.14 | TRM59800.00 - SCIS | Aug. 10, 2016 |
| TRIMBLE NETR9 - 5.10 | TRM59800.00 - SCIS | March 31, 2016 |
| TRIMBLE NETR9 - 5.01 | TRM59800.00 - SCIS | Oct. 21, 2015 |
| TRIMBLE NETR9 - 5.01 | TRM59800.00 - SCIS | June 18, 2015 |
| TRIMBLE NETR9 - 4.85 | TRM59800.00 - SCIS | March 5, 2014 |
| TRIMBLE NETR9 - 4.81 | TRM59800.00 - SCIS | Jan. 29, 2014 |
| TRIMBLE NETR9 - 4.60 | TRM59800.00 - SCIS | March 29, 2013 |
| TRIMBLE NETR9 - 4.60 | TRM59800.00 - SCIS | June 8, 2012 |
| TRIMBLE NETR9 - 4.42 | TRM59800.00 - SCIS | Oct. 13, 2011 |
| TRIMBLE NETR9 - 4.22 | TRM59800.00 - SCIS | May 26, 2011 |

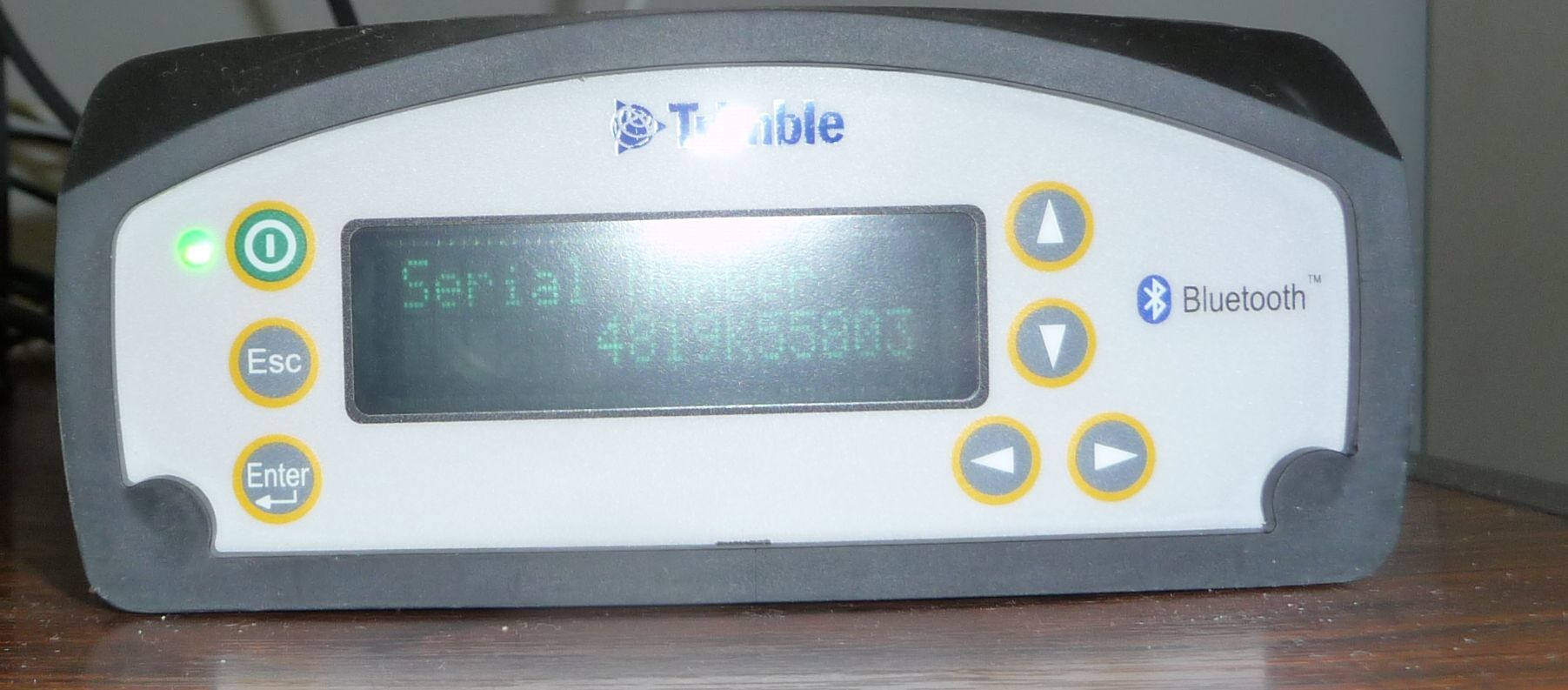

| TRIMBLE NETR5 - 4.17 | TRM59800.00 - SCIS | Oct. 26, 2010 |
| TRIMBLE NETR5 - 4.03 | TRM59800.00 - SCIS | May 5, 2010 |
| TRIMBLE 4000SSI - 7.29 | TRM29659.00 - NONE | Jan. 24, 2008 |
| TRIMBLE 4000SSI - 7.29 | TRM29659.00 - NONE | Feb. 10, 2000 |
| Sender | Subject | Date |
|---|---|---|
| Operation Regina | CNES stations : Ongoing maintenance of REGINA | Feb. 6, 2025, 8:19 a.m. |
| Regina Operation | AREG00PER, DJIG00DJI, DYNG00GRC0, KOUG00GUF, | Nov. 30, 2022, 4:53 p.m. |
| Thierry Lawrence | REGINA CNES stations : firmware upgrade | Jan. 26, 2021, 2:43 p.m. |
| REGINA mission center maintenance on the | Nov. 16, 2020, 7:48 a.m. | |
| CODE AC team | Tracking of G04 with Septentrio receiver | Feb. 18, 2020, 6:02 a.m. |
| Gregory Bonnes | Thierry Lawrence | KOUG, THTG, STJ3, YEL2, HARB, GAMG, NRMG, NKLG, | Feb. 13, 2020, 3:12 p.m. |
| Gregory Bonnes | Thierry Lawrence | NKLG : firmware upgrade | Oct. 22, 2019, 2:52 p.m. |
| Thierry Lawrence | NKLG : receiver change | Aug. 21, 2019, 2:28 p.m. |
| Thierry Lawrence | NKLG : firmware update | Jan. 30, 2019, 4:05 p.m. |
| Gregory Bonnes | Thierry Lawrence | NKLG, SEYG, MAYG : firmware upgrade | Aug. 3, 2018, 2:15 p.m. |
| Thierry Lawrence | NKLG : firmware upgrade | Feb. 20, 2018, 10:39 a.m. |
| Gregory Bonnes | NKLG : firmware upgrade | July 31, 2017, 12:18 p.m. |
| Thierry LAWRENCE | Multiple Stations : CNES maintenance on Jul. 04th | July 3, 2017, 9:59 a.m. |
| Thierry Lawrence | NKLG : firmware update | May 23, 2017, 10:50 a.m. |
| Gregory Bonnes | NKLG : firmware upgrade | Dec. 15, 2016, 4:12 p.m. |
| Gregory Bonnes | NKLG available | Oct. 18, 2016, 10:06 a.m. |
| Gregory Bonnes | NKLG : unavailable | Oct. 17, 2016, 8:06 a.m. |
| Thierry Lawrence | NKLG : firmware update | Aug. 10, 2016, 9:03 a.m. |
| Gregory Bonnes | NKLG : firmware update on Trimble Netr9 | April 1, 2016, 8:52 a.m. |
| NKLG : Sitelog submission for new approximate | Feb. 8, 2016, 10:36 a.m. | |
| Thierry LAWRENCE | AREG, ASCG, CHPG, CPVG, DYNG, FTNA, GRAS, HARB, | Oct. 23, 2015, 9:32 a.m. |
| Gregory Bonnes | NKLG : network issue | Oct. 15, 2015, 9:40 a.m. |
| Gregory Bonnes | NKLG : Availibility recover | Oct. 8, 2015, 8:02 a.m. |
| Gregory Bonnes | NKLG : Unavailability of the receiver | Oct. 5, 2015, 7:36 a.m. |
| Jean Paul CARDALIAGUET | NKLG : data outage | April 21, 2015, 7:38 a.m. |
| [REGINA] Data unavailable from doy 127 to 132 | May 12, 2014, 8:39 a.m. | |
| [REGINA] Data unavailable since doy 032 | Feb. 3, 2014, 2:39 p.m. | |
| Data unavailable since doy 365 | Jan. 3, 2014, 9:04 a.m. | |
| David Maggert | Unavailability of the data since doy 354 session s | Dec. 23, 2013, 2:25 p.m. |
| Unavailability of the data between 305c and 307d | Nov. 4, 2013, 9:19 a.m. | |
| Jean Paul CARDALIAGUET | TR: NKLG station: data loss | Nov. 26, 2012, 8:39 a.m. |
| Vincent Baudouin. | NKLG station : data lost | June 11, 2012, 2:47 p.m. |
| Jean Paul Cardaliaguet | NKLG : firmware update | June 11, 2012, 2:26 p.m. |
| Jean Paul CARDALIAGUET | NKLG status upgrade firmware on receiver | Oct. 13, 2011, 12:39 p.m. |
| Jean Paul CARDALIAGUET | NKLG station status | July 6, 2011, 6:46 a.m. |
| Jean Paul CARDALIAGUET | NKLG station off line | April 27, 2011, 9:38 a.m. |
| Jean Paul CARDALIAGUET | NKLG station status | Oct. 28, 2010, 10:05 a.m. |
| Jean Paul CARDALIAGUET | NKLG status : Firmware upgrade | Oct. 27, 2010, 9:23 a.m. |
| Jean Paul CARDALIAGUET | NKLG station off line | Sept. 9, 2010, 2:30 p.m. |
| Jean Paul CARDALIAGUET | NKLG station status | Aug. 27, 2010, 12:38 p.m. |
| Jean Paul CARDALIAGUET | NKLG station off line | Dec. 11, 2009, 9:29 a.m. |
| Jean Paul CARDALIAGUET | NKLG station status | Nov. 19, 2009, 9:36 a.m. |
| Jean Paul CARDALIAGUET | NKLG station off line | Oct. 19, 2009, 9:09 a.m. |
| Jean Paul CARDALIAGUET | NKLG station off line | Sept. 15, 2009, 10:02 a.m. |
| Jean Paul CARDALIAGUET | NKLG station off line | June 29, 2009, 2:24 p.m. |
| Jean Paul CARDALIAGUET | NKLG station off line | April 16, 2009, 6:55 a.m. |
| Jean Paul CARDALIAGUET | NKLG station off line | Jan. 20, 2009, 10:18 a.m. |
| Jean Paul CARDALIAGUET | NKLG station offline | Dec. 2, 2008, 9:58 a.m. |
| Jean Paul Cardaliaguet | NKLG station status | Oct. 20, 2008, 4:46 p.m. |
| Jean Paul Cardaliaguet | NKLG station status | Oct. 20, 2008, 3:11 p.m. |
| Jean Paul CARDALIAGUET | NKLG station on line | Sept. 24, 2008, 3:27 p.m. |
| Jean Paul CARDALIAGUET | NKLG station on line | Sept. 1, 2008, 4:07 p.m. |
| Jean Paul CARDALIAGUET | NKLG station off line | Aug. 28, 2008, 1:17 p.m. |
| Jean Paul CARDALIAGUET | NKLG station status | July 16, 2008, 2:02 p.m. |
| Jean Paul CARDALIAGUET | NKLG station off line | July 9, 2008, 2 p.m. |
| Jean Paul CARDALIAGUET | NKLG station off line | June 23, 2008, 9:17 a.m. |
| Jean Paul CARDALIAGUET | NKLG station status | May 15, 2008, 2:04 p.m. |
| Jean Paul CARDALIAGUET | NKLG station off line | May 7, 2008, 2:07 p.m. |
| Jean Paul CARDALIAGUET | NKLG station status | April 23, 2008, 12:18 p.m. |
| Jean Paul CARDALIAGUET | NKLG station off line | April 21, 2008, 12:21 p.m. |
| Jean Paul CARDALIAGUET | NKLG station status | March 27, 2008, 2:26 p.m. |
| Jean Paul CARDALIAGUET | NKLG station status | Jan. 10, 2008, 7:31 a.m. |
| Jean Paul CARDALIAGUET | NKLG station online | Nov. 7, 2007, 2:53 p.m. |
| Jean Paul CARDALIAGUET | NKLG station online | Sept. 26, 2007, 11:48 a.m. |
| Jean Paul Cardaliaguet | Station NKLG back on line | April 30, 2007, 2:26 p.m. |
| Jean Paul Cardaliaguet | Station NKLG back on line | Feb. 22, 2007, 10:07 a.m. |
| Jean Paul Cardaliaguet | Station NKLG back on line | Feb. 9, 2007, 2:47 p.m. |
| Jean Paul Cardaliaguet | Station NKLG off-line | Feb. 8, 2007, 10:11 a.m. |
| Jean Paul Cardaliaguet | Station NKLG back on-line | Jan. 30, 2007, 1:06 p.m. |
| Jean Paul Cardaliaguet | Station NKLG off-line | Jan. 29, 2007, 8:58 a.m. |
| Jean Paul Cardaliaguet | Station NKLG back on-line | Jan. 18, 2007, 3:31 p.m. |
| Jean Paul Cardaliaguet | Station NKLG off-line | Jan. 16, 2007, 2:51 p.m. |
| Jean Paul Cardaliaguet | Station NKLG back on-line | Dec. 14, 2006, 1:57 p.m. |
| Jean Paul CARDALIAGUET | NKLG station : data not available | Dec. 12, 2006, 8:26 a.m. |
| Jean Paul CARDALIAGUET | NKLG station : data not available | Nov. 14, 2006, 3:23 p.m. |
| Jean Paul CARDALIAGUET | NKLG station : data not available | Oct. 16, 2006, 7:38 a.m. |
| Jean Paul CARDALIAGUET | NKLG station : data available again | Oct. 11, 2006, 2:12 p.m. |
| Jean Paul CARDALIAGUET | NKLG station : data not available | Oct. 9, 2006, 11:39 a.m. |
| Jean Paul CARDALIAGUET | Data loss from NKLG | Oct. 25, 2005, 8:15 a.m. |
| Jean Pierre Marechal | NKLG : Power supply outage | Jan. 17, 2005, 1:05 p.m. |
| JP Marechal | NKLG station security stopping | May 13, 2004, 6:34 a.m. |
Analysis Center Usage
| AC | Final | Rapid | Ultra |
|---|---|---|---|
| EMR | March 9, 2025 | March 9, 2025 | |
| ESA/ESOC | Jan. 19, 2025 | ||
| MIT | Feb. 23, 2025 | ||
| GRG | Feb. 23, 2025 | March 9, 2025 | March 9, 2025 |
| NGS | Feb. 23, 2025 | March 9, 2025 | |
| GFZ | Feb. 16, 2025 | March 4, 2025 | March 4, 2025 |
| CODE | Feb. 23, 2025 | March 9, 2025 | March 9, 2025 |
| JGX | March 1, 2025 | Feb. 3, 2025 | March 9, 2025 |
| WHU | Feb. 22, 2025 | Feb. 22, 2025 | |
| SIO | Feb. 23, 2025 | March 9, 2025 | March 9, 2025 |
| USNO | March 9, 2025 | March 9, 2025 | |
| JPL | Feb. 23, 2025 | March 9, 2025 | March 8, 2025 |
