Country/Region
Eusebio, Brazil
Latitude, Longitude
-3.877447, -38.425536
Elevation
21.7 (m)
| Receiver - Firmware | SEPT POLARX5 - 5.5.0 |
|---|---|

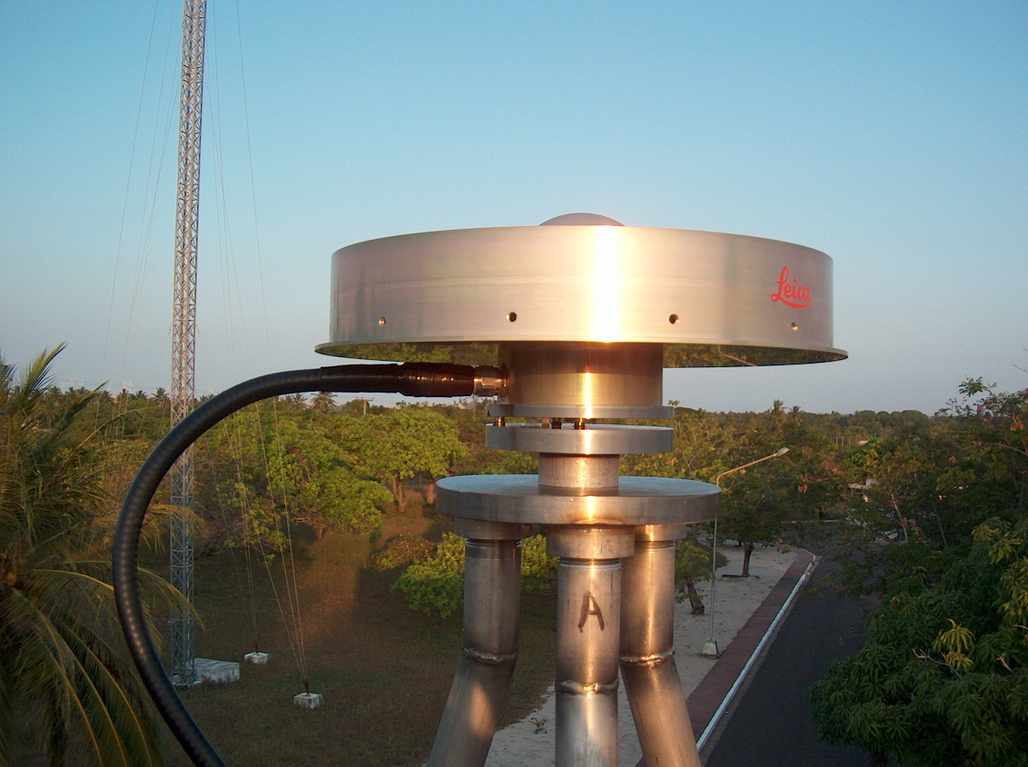

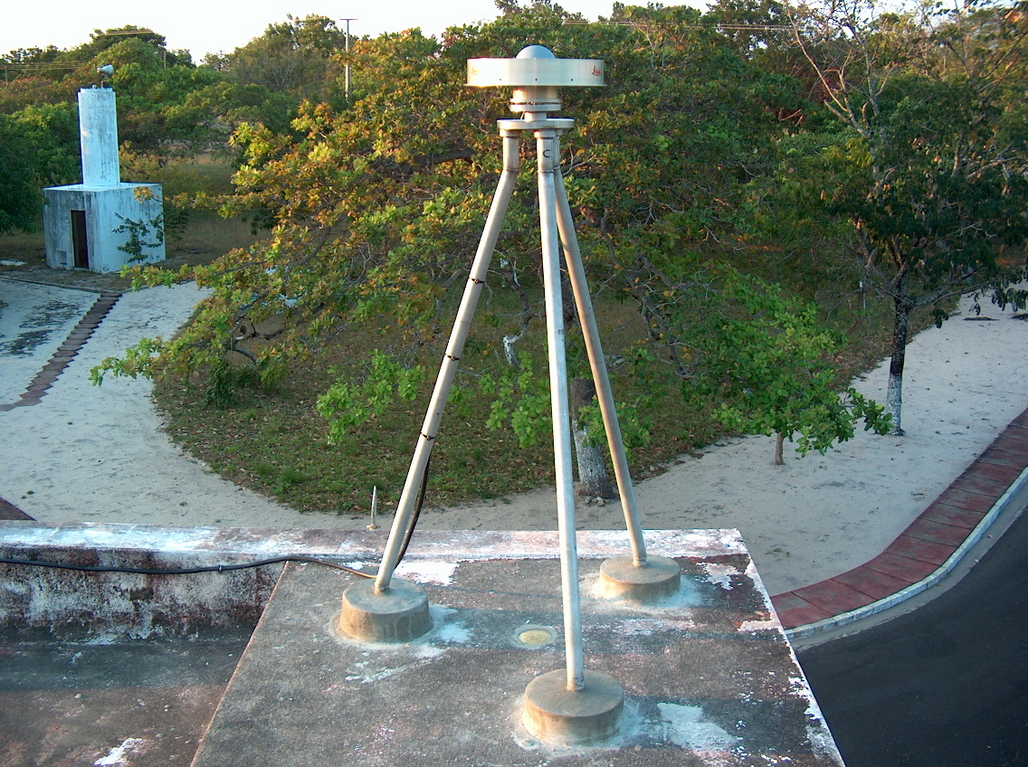

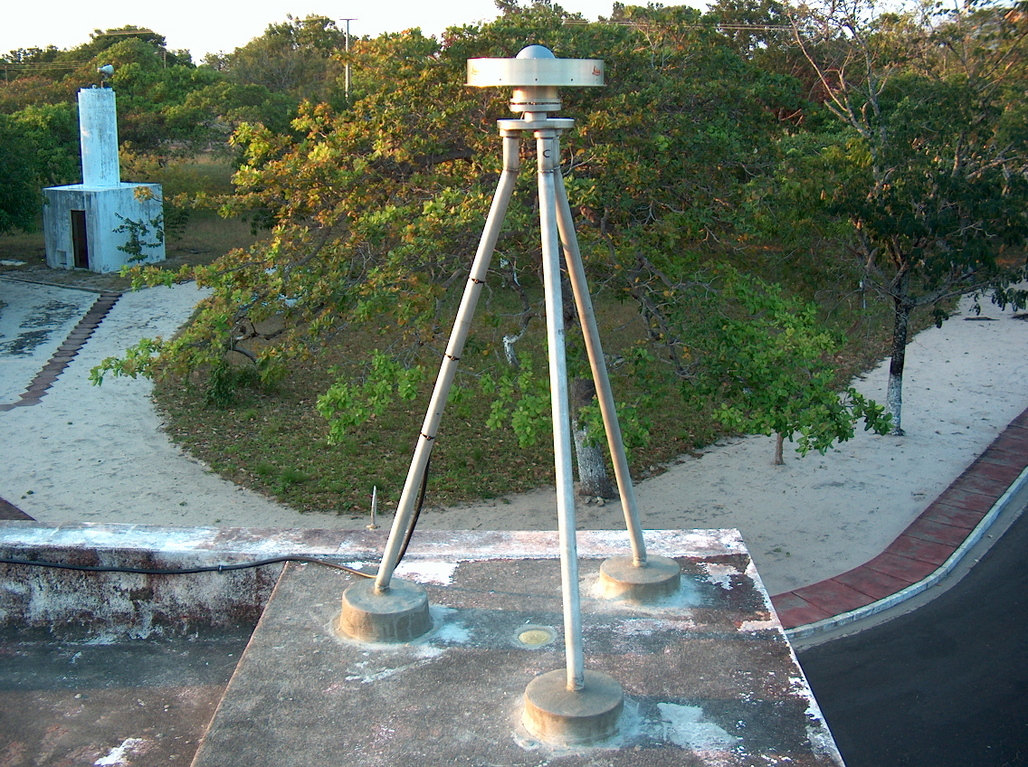

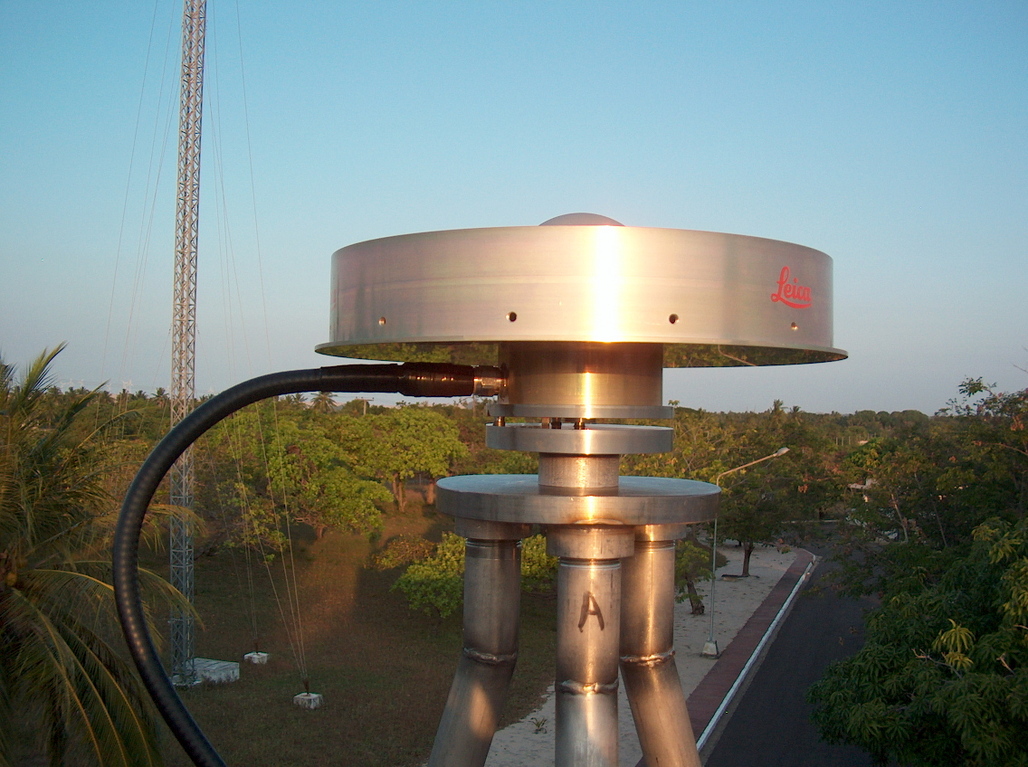

| Antenna - Radome | LEIAT504 - NONE |
| Antenna Calibration | ROBOT |
| Clock | INTERNAL |
| Last RINEX Data - Primary Data Center | 2025-08-26 (v2) - https://geodesy.noaa.gov/corsdata/ |
| Constellation - RINEX | GPS+GLO+GAL |
| Constellation - RealTime | |
| DOMES Number | 41602M002 |
| Nearby Tide Gauge | N/A |
| Download Type | Link |
|---|---|
| Station Log (ASCII) | BRFT00BRA.log |
| Station Log (GeodesyML) | BRFT00BRA.xml |
| Global Data Center | Link |
|---|---|
| CDDIS | CDDIS Data |
| Wuhan University | Wuhan University Data |
| ESA | ESA Data |
| IGN | IGN Data |
| KASI | KASI Data |
| SOPAC | SOPAC Data |
For a list of other data centers, visit IGS Data Access
| Receiver - Firmware | Antenna - Radome | Date |
|---|---|---|
| SEPT POLARX5 - 5.5.0 | LEIAT504 - NONE | Feb. 6, 2023 |
| LEICA GRX1200PRO - 9.20/2.127 | LEIAT504 - NONE | April 29, 2019 |
| LEICA GRX1200PRO - 8.71/IME2.127 | LEIAT504 - NONE | Sept. 2, 2014 |
| LEICA GRX1200PRO - 8.20/IME2.127 | LEIAT504 - NONE | Dec. 14, 2012 |
| LEICA GRX1200PRO - 8.20/IME2.125 | LEIAT504 - NONE | Oct. 31, 2011 |
| LEICA GRX1200PRO - 8.10/IME2.121 | LEIAT504 - NONE | Feb. 3, 2011 |
| LEICA GRX1200PRO - 8.10/IME 2.125 | LEIAT504 - NONE | Jan. 18, 2011 |
| LEICA GRX1200PRO - 7.80/IME 2.125 | LEIAT504 - NONE | April 27, 2010 |
| LEICA GRX1200PRO - 2.12 | LEIAT504 - NONE | Sept. 6, 2005 |
| Sender | Subject | Date |
|---|---|---|
| CODE AC team | Tracking of G04 with Septentrio receiver | Feb. 18, 2020, 6:02 a.m. |
| Giovanni Sella | BRFT new firmware 8.71 | Sept. 2, 2014, 4:12 p.m. |
| Giovanni Sella | Log format corrections only to: BDOS BRFT BRMU | Aug. 9, 2013, 7:46 p.m. |
| Re: some receivers misreporting satellite health | June 7, 2013, 11:18 a.m. | |
| some receivers misreporting satellite health bits | April 24, 2013, 5:31 p.m. | |
| Re: some receivers misreporting satellite health | April 24, 2013, 3:19 p.m. | |
| Analysis Center Coordinator | some receivers misreporting satellite health bits | April 24, 2013, 2:09 p.m. |
| Giovanni Sella | BRFT firmware updated to 8.20/IME2.125 | Nov. 1, 2011, 7:55 p.m. |
| Giovanni Sella | BRFT switched to INTERNAL clock | Feb. 7, 2011, 11:02 p.m. |
| Giovanni Sella | BRFT Firmware change in Internal Measurement | Feb. 3, 2011, 2:43 p.m. |
| Giovanni Sella | BRFT Switched back to External H-MASER | Jan. 31, 2011, 4:23 p.m. |
| Giovanni Sella | BRFT on INTERNAL clock | Jan. 25, 2011, 2:04 p.m. |
| Giovanni Sella | BRFT switched back to Hydrogen Maser | Jan. 24, 2011, 3:17 p.m. |
| Giovanni Sella | BRFT switched to internal clock and not external | Jan. 19, 2011, 7:44 p.m. |
| Giovanni Sella | BRFT firmware upgrade to 8.10 | Jan. 18, 2011, 6:35 p.m. |
| BRFT firmware 8.10 installed | Jan. 18, 2011, 5:57 p.m. | |
| Giovanni Sella | BRFT site log updated NO equipment change | Jan. 10, 2011, 1:44 p.m. |
| Giovanni Sella | BRFT new firmware and changed elevation | April 29, 2010, 7:51 p.m. |
| Giovanni Sella | BRFT still offline | March 22, 2010, 9:42 p.m. |
| Giovanni Sella | BRFT not sending data | Feb. 26, 2010, 11:59 a.m. |
| Giovanni Sella | NGS Submission to IGS global data centers | June 13, 2008, 1:23 a.m. |
| Giovanni Sella | BRFT receiver tracking poorly | March 18, 2008, 7:28 p.m. |
| Giovanni Sella | BRFT: Missing data 047-060 2008 | March 3, 2008, 10:19 p.m. |
| Giovanni Sella | Logs updated aspa barh bdos brft brmu cnmr | Nov. 13, 2006, 10:16 p.m. |
| Miranda Chin/NOAA | FORT decommissioned | April 14, 2006, 1:19 p.m. |
Analysis Center Usage
| AC | Final | Rapid | Ultra |
|---|---|---|---|
| ESA/ESOC | Jan. 19, 2025 | ||
| EMR | Feb. 16, 2025 | March 9, 2025 | March 9, 2025 |
| MIT | Feb. 23, 2025 | ||
| SIO | Feb. 23, 2025 | March 9, 2025 | March 9, 2025 |
| WHU | Feb. 21, 2025 | ||
| USNO | March 8, 2025 | ||
| GRG | Feb. 23, 2025 | ||
| NGS | Feb. 23, 2025 | ||
| GFZ | Feb. 16, 2025 | March 4, 2025 | |
| CODE | Feb. 23, 2025 | March 9, 2025 | March 9, 2025 |
| JPL | Feb. 23, 2025 | March 9, 2025 | March 10, 2025 |
